Description

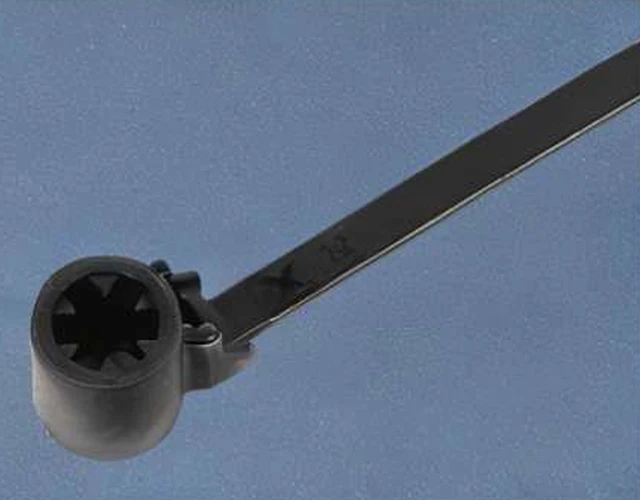

This Cedar Type Tie Holder is an integrated wire harness fixing accessory combining a stud-type mounting base and a nylon cable tie, specially developed for installation scenarios with pre-installed studs on sheet metal, plastic housings, and other substrates.

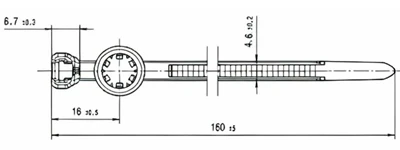

Product Dimensions

ITEM.No.	LENGTH (mm)	WIDTH (mm)	HOLE DIA. (mm)	BUNDLE DIA. (mm)	MIN.LOOP TENSILE STRENGTH
ITEM.No.	LENGTH (mm)	WIDTH (mm)	HOLE DIA. (mm)	BUNDLE DIA. (mm)	LBS	KGS
XZJ-5x160CTH-M6	160	5	M6	3-35	50	22
XZJ-5x160CTH-M5	160	5	M5	3-35	50	22
XZJ-5x170CTH	170	5	M5/M6	3-36	50	22

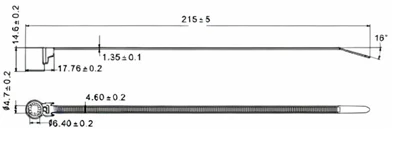

XZJ-5×215CTH	215	4.6	M6	3-50	50	22
XZJ-6x160CTH	160	6	M6	3-35	66	30
XZJ-6×166CTH	165	6	M6	3-35	66	30
XZJ-6×170CTH	170	6	M6	3-36	66	30
XZJ-9x170CTH	170	9	M5/M6	3-38	122	55
XZJ-8×160CTH	160	8	MS/M5	3-35	110	50
