Hose Clamp System - Stainless Steel Hose Clamps & Banding

Select the Hose Clamp System You Need

Naked Stainless Steel Cable Ties Stainless Steel Cable Tie (Polyester Coated) stainless steel PVC coated cable ties Stainless Steel Band Hose Clamp System Stainless Steel Buckle Stainless Steel Cable Tie Tool Nylon Cable Tie with Stainless Steel Inlay Stainless Steel Cable Marker Ties

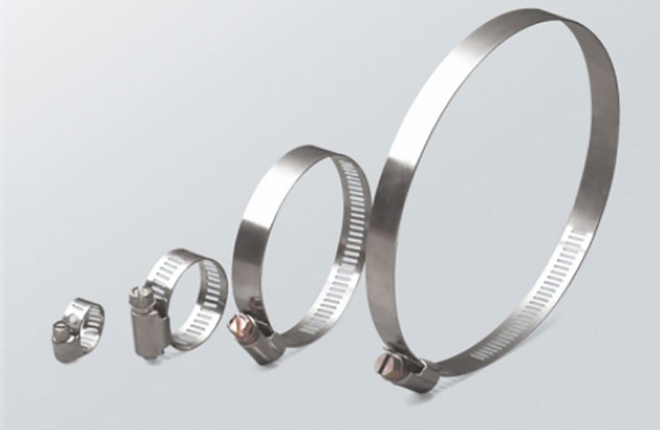

American Type Hose Clamp

Get a Quote

Width Approx: 8, 12.7/14.2

Thickness: 0.6mm~0.7mm

Material Quality: W1/W2/W4

All length are available, Stainless steel type: 201, 304, 316, 316L, Special sizes can be customized;

Be widely used in hoses bundling;

Worm drive mechanism;

Use galvanized iron, stainless steel material

Type	Specification	Width Approx	Thickness	Material Quality
AH010	8-12	8	0.6mm	W1/W2/W4
AH020	10-16	8	0.6mm	W1/W2/W4
AH030	13-19	8	0.6mm	W1/W2/W4
AH040	10-23	8	0.6mm	W1/W2/W4
AH050	11-25	8	0.6mm	W1/W2/W4
AH060	10-22	12.7/14.2	0.7mm	W1/W2/W4
AH070	11-25	12.7/14.2	0.7mm	W1/W2/W4
AH080	14-27	12.7/14.2	0.7mm	W1/W2/W4
AH090	18-32	12.7/14.2	0.7mm	W1/W2/W4
AH100	21-38	12.7/14.2	0.7mm	W1/W2/W4
AH110	25-44	12.7/14.2	0.7mm	W1/W2/W4
AH120	35-51	12.7/14.2	0.7mm	W1/W2/W4
AH130	38-57	12.7/14.2	0.7mm	W1/W2/W4
AH140	40-64	12.7/14.2	0.7mm	W1/W2/W4
AH150	46-70	12.7/14.2	0.7mm	W1/W2/W4
AH160	52-76	12.7/14.2	0.7mm	W1/W2/W4
AH170	59-82	12.7/14.2	0.7mm	W1/W2/W4
AH180	65-89	12.7/14.2	0.7mm	W1/W2/W4
AH190	76-92	12.7/14.2	0.7mm	W1/W2/W4
AH200	78-101	12.7/14.2	0.7mm	W1/W2/W4
AH210	84-108	12.7/14.2	0.7mm	W1/W2/W4
AH220	91-114	12.7/14.2	0.7mm	W1/W2/W4
AH230	105-127	12.7/14.2	0.7mm	W1/W2/W4
AH240	118-140	12.7/14.2	0.7mm	W1/W2/W4
AH250	130-152	12.7/14.2	0.7mm	W1/W2/W4
AH260	143-165	12.7/14.2	0.7mm	W1/W2/W4
AH270	155-178	12.7/14.2	0.7mm	W1/W2/W4

German Type Hose Clamp

Get a Quote

Width Approx: 9.0/12.0

Thickness: 0.7mm

Material Quality: W1/W2/W4

Type	Specification	Width Approx	Thickness	Material Quality
GH008	8-12	9.0/12.0	0.7mm	W1/W2/W4
GH010	10-16	9.0/12.0	0.7mm	W1/W2/W4
GH012	12-20	9.0/12.0	0.7mm	W1/W2/W4
GH016	16-25	9.0/12.0	0.7mm	W1/W2/W4
GH020	20-32	9.0/12.0	0.7mm	W1/W2/W4
GH025	25-40	9.0/12.0	0.7mm	W1/W2/W4
GH032	32-50	9.0/12.0	0.7mm	W1/W2/W4
GH040	40-60	9.0/12.0	0.7mm	W1/W2/W4
GH050	50-70	9.0/12.0	0.7mm	W1/W2/W4
GH060	60-80	9.0/12.0	0.7mm	W1/W2/W4
GH070	70-90	9.0/12.0	0.7mm	W1/W2/W4
GH080	80-100	9.0/12.0	0.7mm	W1/W2/W4
GH090	90-110	9.0/12.0	0.7mm	W1/W2/W4
GH100	100-120	9.0/12.0	0.7mm	W1/W2/W4
GH110	110-130	9.0/12.0	0.7mm	W1/W2/W4
GH120	120-140	9.0/12.0	0.7mm	W1/W2/W4
GH130	130-150	9.0/12.0	0.7mm	W1/W2/W4
GH140	140-160	9.0/12.0	0.7mm	W1/W2/W4
GH150	150-170	9.0/12.0	0.7mm	W1/W2/W4
GH160	160-180	9.0/12.0	0.7mm	W1/W2/W4

Please contact sales for any other special sizes

Find Your Solution Here

What makes your stainless steel hose clamps suitable for industrial use?

Our clamps are made from high-grade stainless steel (304/316), feature a robust worm-drive mechanism for even pressure distribution, and are designed to provide a secure, leak-proof seal on hoses and pipes under vibration and pressure.

How do I select the correct size hose clamp?

Measure the outer diameter (OD) of the hose or pipe. Choose a clamp with a minimum and maximum diameter range that fits your measurement. It's better to be within the middle of the clamp's range for optimal performance.

Are these clamps reusable or one-time use?

Our worm-drive hose clamps are fully reusable and adjustable. They can be loosened, repositioned, and re-tightened as needed for maintenance or reconfiguration.

Can I use these clamps for fuel lines or coolant hoses?

Yes, the chemical-resistant properties of stainless steel make these clamps excellent for automotive, marine, and industrial fluid systems, including fuel, coolant, oil, and water lines.

What tool is needed for installation?

They are typically installed and tightened using a standard screwdriver or a socket/wrench on the screw head, making installation and maintenance simple.

At ETL, we deliver end-to-end expert support alongside custom cable tie solutions — including material upgrades, surface treatments, and brand customization.
