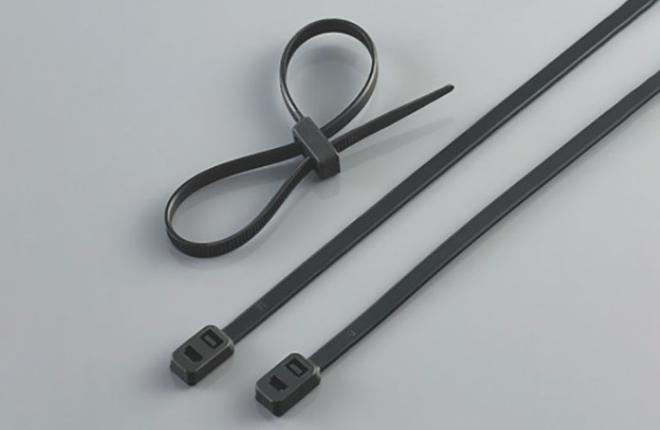

Double Head Cable Ties

With locking mechanisms on both ends, these specialized ties enable creative and secure cable management solutions for complex wiring harnesses.

Dual Locking Heads for Flexible Configurations

Enhanced Cable Management Capabilities

Professional Harness Organization

Select the Double Head Cable Ties You Need

Self-Locking Cable Ties Releasable Lashing Cable Ties Nylon Cable Marker Ties Mountable Head Ties Automotive-grade Cable Ties Push Mount Ties Double Head Cable Ties Wire/Cable Strap Series Other Types Nylon Cable Tie Packaging

Double Locking Nylon Cable Ties

Get a Quote

Tensile Strength: 18Ibs ~ 50Ibs

Width: 6.0mm ~ 9.0mm

Length: 114mm~350mm

• Material: Nylon 66 94V-2 certificated by UL. Acid-control and not easy to age.

• Usage: double locking,strong supporting capacity

Item No.	L		W	E Bundle Diameter	Tensile Strength		Note
Item No.	Inch	mm	mm	mm	PA12 (kgs)	PA66 (kgs)	Note
JX-114DL	4.5"	114	6.0	8-28	18	35	Solo Lock
JX-175DL	6.8"	175	6.0	8-40	18	35
JX-180DL	7"	180	9.0	15-45	25	40
JX-180DDL	7"	180	9.0	15-45	25	40	Double Lock
JX-260DL	10 _1/4"	260	9.0	30-66	40	50
JX-350DL	13 _5/8"	350	9.0	30-90	40	50

Double Head Lock Cable Ties

Get a Quote

Tensile Strength: 50 Ibs

Width: 4.8 mm

Length: 225mm~370mm

Material: Nylon 12 94V-2 certificated by UL.

Item No.	L		W	D1		Tensile Strength		Packing
Item No.	Inch	mm	mm	Max.	Min.	lbs	kgs	Packing
RDCV-225	8 _7/8"	225	4.8	59	2.5	50	22	100PCS
RDCV-300	11 _7/8"	300	4.8	83	2.5	50	22
RDCV-370	14 _9/16"	370	4.8	105	2.5	50	22

Why Our Nylon Cable Ties Outperform

Our nylon cable ties excel through relentless pursuit of perfection, with each tie standing up to the toughest environments.

Precision Manufacturing

We operate automated injection molding systems to produce nylon cable ties with consistent quality and dimensional accuracy, ensuring reliable performance in every tie we make.

Quality Assurance

Each production batch undergoes rigorous testing for tensile strength, locking strength, and material composition, with UL certification and complete traceability for verified quality.

The Choice Trusted Worldwide

Our products are exported to Southeast Asia, Europe, the Americas, Hong Kong, Macau, and Taiwan region, with long-term supply partnerships established leading global electronics corporations.

Start Collaboration

Our Nylon Cable Ties in German Manufacturing

Our Nylon Cable Ties across Australian Projects

Our Nylon Cable Ties for Industrial Maintenance in the UK

Our Nylon Cable Ties Organizing Commercial Facilities across the US

Find Your Solution Here

What is a double head cable tie used for?

It is a specialized tie used for creating secure mid-span lashing, forming "X" or "H" patterns to organize parallel wire runs, or bundling two separate objects together. It provides a tidy, professional harness look.

How do I install a double head tie?

Form a loop with the tie around the items to be bundled. Thread one end through the locking head on the opposite end, and pull tight. Repeat for the other side. It effectively creates two connected loops from one piece.

What are common applications?

They are widely used in aerospace wiring, complex industrial control panels, data server racks, and theatrical/event lighting rigs where precise, organized, and high-integrity cable management is essential.

Can I use two standard ties instead?

While possible, a double head tie is neater, uses less material, and provides a more integrated and often stronger connection point at the center where the two bundles meet.

Are they available in different materials?

Primarily made from standard or high-performance Nylon 66. For extreme environments, we can supply them in stainless steel or with a stainless steel inlay for added security.

At ETL, we deliver end-to-end expert support alongside custom cable tie solutions — including material upgrades, surface treatments, and brand customization.
