Push Mount Ties - Tool-Free UL-Cert, Durable Cable Ties

Select the Push Mount Ties You Need

Self-Locking Cable Ties Releasable Lashing Cable Ties Nylon Cable Marker Ties Mountable Head Ties Automotive-grade Cable Ties Push Mount Ties Double Head Cable Ties Wire/Cable Strap Series Other Types Nylon Cable Tie Packaging

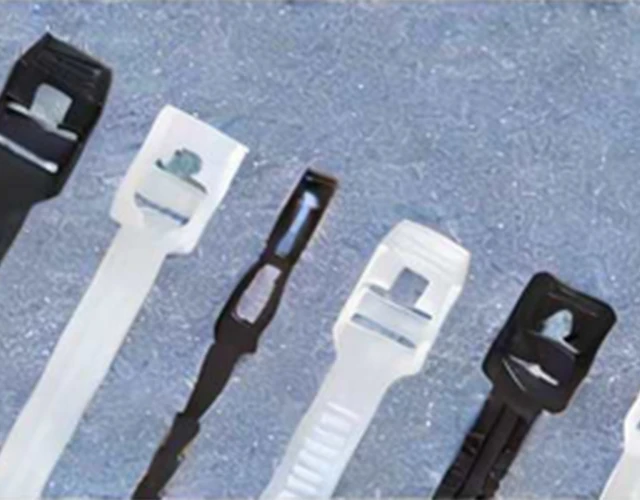

FISHBONEDEVICETIE

Get a Quote

Width: 4.5mm~10mm

Length: 115mm~200mm

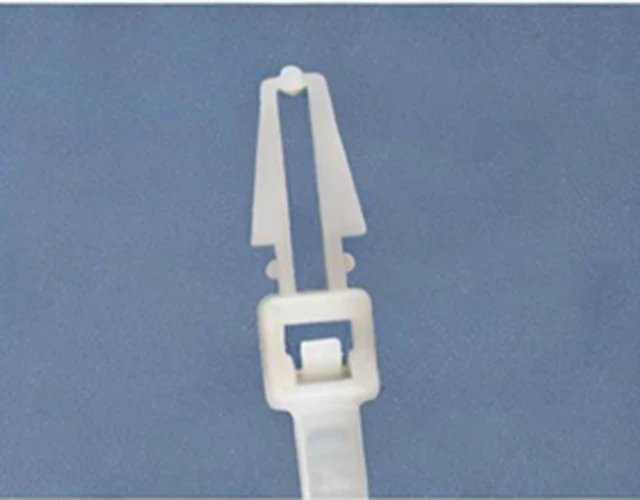

PUSHMOUNTCABLETIE

Get a Quote

Tensile Strength: 18Ibs~120Ibs

Width: 2.5mm~7.2mm

Length: 100m~150m

PUSH MOUNTCABLETIE

Get a Quote

Tensile Strength: 18Ibs~50Ibs

Width: 3.6mm~4.8mm

Length: 150mm~200mm

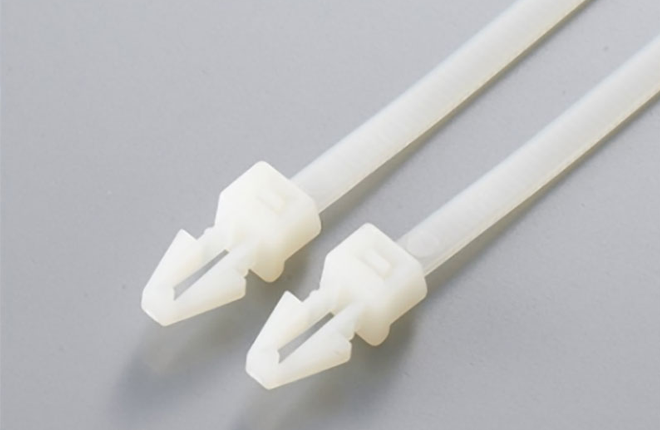

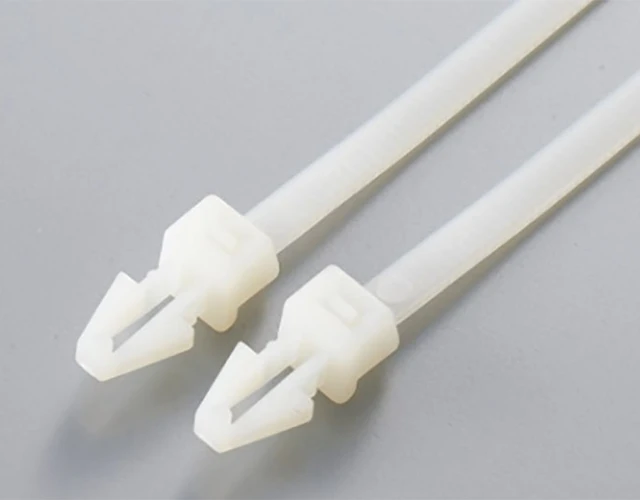

Push Mount Nylon 66 Cable Ties

Get a Quote

Tensile Strength: 50Ibs

Width: 4.8mm

Length: 200mm

• Material: Nylon 66,94V-2, agreed by UL.Acid and corrode resisting, insulate, last longand not apt to age.

• Usage: insert tie to the hole of table and tighten it.

Item No.	L		W	Max.bundle Dia.	Tensile Strength		Packing
Item No.	Inch	mm	mm	mm	lbs	kgs	Packing
JX-200PT	8.0"	200	4.8	50	50	22	100PCS

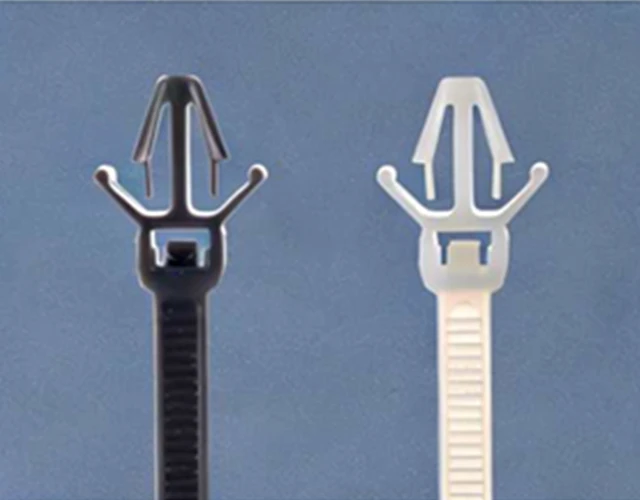

Nylon Wing Push Mount Cable Ties

Get a Quote

Tensile Strength: 50Ibs

Width: 4.8mm

Length: 190mm

• Material: Nylon 66, 94V-2, agreed by UL. Acid and corrode resisting, insulate, last long andnot apt to age.

• Usage: insert tie to the hole of table and tighten it.

Item No.	L		W	Max.bundle Dia.	Tensile Strength
Item No.	Inch	mm	mm	mm	lbs	kgs
JX-190PT	7.6"	190	4.8	3~42	50	22

Hole Dia		Panel Thickness		Packing
Inch	mm	Inch	mm	Packing
0.236	6.0	0.118	3.0	100PCS

Nylon 66 Winged Push Mounting Cable Ties

Get a Quote

Tensile Strength: 50Ibs

Width: 2.5mm~4.8mm

Length: 100mm~200mm

• Material: Nylon 66,94V-2, agreed by UL. Acid and corrode resisting, insulate, last long and not apt to age.

• Usage: insert tie to the hole of table and tighten it.

Item No.	L		W	Max.bundle Dia.	Tensile Strength
Item No.	Inch	mm	mm	mm	lbs	kgs
JX-100PT	4"	100	2.5	25	18	8.0
JX-150PT	6"	155	3.6	35	40	18
JX-200PT	8"	200	4.8	50	50	22

Hole Dia		Panel Thickness		Packing
Inch	mm	Inch	mm	100PCS
0.189	4.5	0.094	2.4
0.181	4.6	0.091	2.3
0.236	6.0	0.0118	3.0

Heavy-Duty Push Mount Cable Ties

Get a Quote

Tensile Strength: 120Ibs

Width: 7.8 mm

Length: 145mm

• Material: Nylon 66, 94V-2, agreed by UL.Acid and corrode resisting, insulate, last long and notapt to age.

• Usage: insert tie to the hole of table and tighten it.

Item No.	L		W	Max.bundle Dia.	Tensile Strength		Packing
Item No.	Inch	mm	mm	mm	lbs	kgs	Packing
JX-145PT	5.8"	145	7.8	5~31	120	55	100PCS

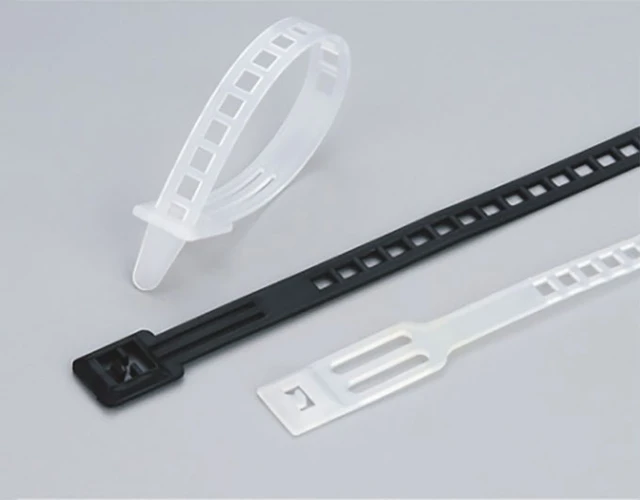

Trapezoid Nylon Cable Ties

Get a Quote

Tensile Strength: 18Ibs

Width: 3.6 mm

Length: 300mm

• Material: Nylon 66 certificated by UL.

• Usage: Beaded design keeps wires from shifting or slipping.

Item No.	L		W	Max.bundle Dia.	Tensile Strength		Packing
Item No.	Inch	mm	mm	mm	lbs	kgs	Packing
JX-300	12"	300	3.6	5~88	18	8	100PCS

Find Your Solution Here

How do push mount ties work?

They consist of a nylon tie with a pre-attached push-mount base. You simply push the base's locking legs into a pre-drilled round hole (typically 6mm or 1/4"). A click confirms it's locked. Then, thread and tighten the tie to secure your bundle—no screws, bolts, or adhesives needed.

What thickness of panel can they mount to?

They are designed for panels within a specific thickness range (e.g., 1-3mm). The locking legs snap open behind the panel. Please check the product specifications for the compatible panel thickness.

Are they removable/reusable?

Most push mounts are designed for permanent, one-time installation. Removal usually requires destroying the mount. However, the tie itself can often be cut and replaced if needed, leaving the mount in place.

What are the main advantages over screw mounts?

The key advantage is drastically faster installation—no tools required for the mounting step. This leads to significant labor savings on assembly lines and in field service, improving efficiency.

Can they withstand vibration?

Yes, when installed correctly in the proper size hole, they provide a very secure, snap-fit lock that is highly resistant to vibration and pull-out, making them excellent for automotive, electronics, and machinery.

At ETL, we deliver end-to-end expert support alongside custom cable tie solutions — including material upgrades, surface treatments, and brand customization.
