Description

Specifications and Features

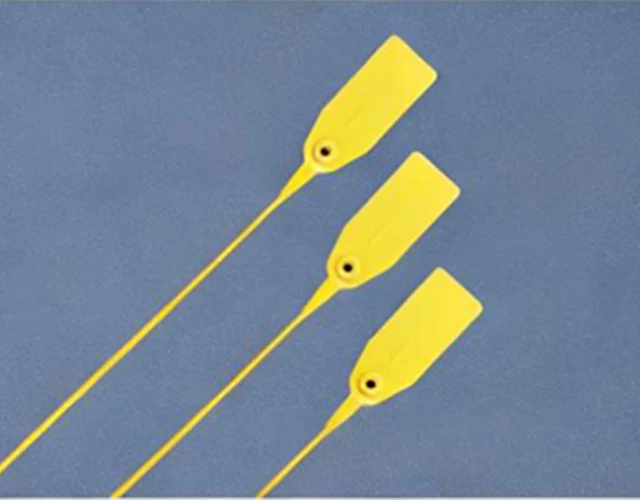

Polypropylene lag equipped with metal insert in lock mechanism for increased security
The largeflogallowsamplo printingspacetogeteesyldentification
Easy to apply with user friendly grooves at the strip end
Multi-locking pozitions for versatile usages
Tenslle strength: about 12 kgf
Customized Options
Customernamelogo,uniquesequentialnumberedbarcodedandQRcode(Lasermarking)
Standard colors of white and yellow or other available customized colors
Applications
SecurityCashandcoureBags.Food&Beveragecars,Fireextinguisherpins,mCassttes,Ballotboxes,Storagetotes,SuitcasesandLuggageHealthcarboxes.
AirlinecorgoTravellingbags.accessories,Laptopbogs
IndustriesAirline,Express,Cnenicals,Banking,Government,Fire service,Healthcare,Food &Beverage,Fishery,Retail,E-commerce
Instruesionx for Usa
Insert thetipondorthe seal within the cone.
Pull the end to adjast to your liking.
Vertfy thot the security sealis sealed.
Record the seal number to control security.
Removal
By scissors or hand

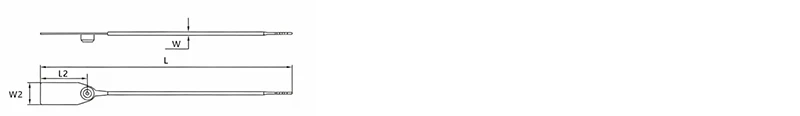

Product Dimensions

ITEM.No.	L		W mm	TENSILE STRENGTH(mm)		MAX.BUNDLE DIA. (W2xL2/mm)
ITEM.No.	Inch	mm	W mm	LBS	KGS	MAX.BUNDLE DIA. (W2xL2/mm)
XZJ-JD200	8*	200	2.3	27	12	18×37.5
XZJ-SN300	12"	300	2.3	33	15	25×60.5
XZJ-5T300	12*	300	2.2	36	16	20×50
XZJ-ST400	16"	400	7.0	88	40	25×55
XZJ-SY006	15.3°	389	4.0	27	12	27.8x40
XZJ-SY007	10"	250	4.0	27	12	27.8x40
XZJ-SY008	8"	204	7.7	40	18	014.7
XZJ-SY008X	7.8	198	8.3	33	15	@11.9
XZJ-SY009	8.4"	213	8.0	33	15	8.1×9.4
XZJ-SY052L	16"	405	2.0	16	7	22×57.5
XZJ-SY052S	11.3"	286	2.0	18	8	22×68.5
XZJ-SY055	10.3"	260	2.4	11	5	20×32
XZJ-SY056	17.6"	447	3.9	77	35	30×55.5
XZJ-SY057	14.3"	363	3.9	77	35	30×55.5
XZJ-SY058	16.6°	422	3.9	66	30	52.2×75.6
XZ)-SY065	14.6"	371	7.4	77	35	50×67.4
XZJ-SY067	14.6”	371	6.2	77	35	22x64
XZJ-SY071	19.7"	500	4.0	77	35	30x59.5
XZJ-SY072	19.7"	490	2.0	27	12	28×58.2
XZJ-SY120	4.7"	120	2.7	13	6	9x13
XZJ-SY170	6.6'	168	1.8	13	6	20x39
XZJ-SY205	8.1"	205	2.6	33	15	25×38.7
XZJ-SY210	8.2"	208	2.1	44	20	21×44,6
XZJ-SY220	8.7"	220	6.6	40	18	32.5x56
XZJ-SY226	8.7"	220	2.0	22	10	27×27.5
XZJ-SY249	9.8'	249	7.0	33	15	18.1×48
XZJ-SY25158	9.8"	249	2.2	33	15	58x100
XZJ-5Y25185	10"	250	2.2	33	15	85×100
XZJ-SY25185B	10"	250	3.6	33	15	85×100
XZJ-SY260	10.2"	258	2.1	33	15	30×56.5
XZJ-SY271	10.7"	271	7.8	40	18	25×86
XZJ-SY278	10.5"	266	3.9	33	15	24x48
XZJ-SY290B	11.1"	282	3.3	36	16	30x59
XZJ-SY300	12"	305	2.8	33	15	20.6x40.5
XZJ-SY310	12.2°	308	4.0	27	12	28x40
XZJ-SY312	12.6"	313	5.9	66	30	26x49.5
XZJ-SY320	12.6”	320	5.5	44	20	22x65
XZJ-SY330	12.6°	320	4.0	33	15	22.5×37.5
XZJ-SY376	14.9"	378	8.0	77	35	25.1×69.5
XZJ-SY377	14.9°	380	6.2	62	28	19.8×51.3
XZJ-SY380	14.9°	380	6.0	77	35	25×61.8
XZJ-SY381	14.6"	372	6.2	77	35	25x62
XZJ-SY385	15'	381	5.6	62	28	24.3x46
XZJ-SY395	15.4"	392	2.2	27	12	22.4×43.8
XZ)-SY411	16.2'	411	2.3	33	15	22x46
XZJ-SY420	16.5"	420	8.0	88	40	56.5x100
XZJ-SY421	16.6"	421	7.0	77	35	80x110
XZJ-SY430	16.9"	430	6.0	77	35	25x61.8
XZJ-SY498	19.6"	498	3.9	33	15	22×52
XZJ-SY605	23.8"	605	2.9	40	18	22.5x42.5
XZJ-SY654	25.7"	654	3.8	77	35	30×59
XZJ-YL300	11.8"	300	2.5	33	15	25x60
XZJ-ET001	10'	250	2.8	18	8	21x33
XZJ-ET002	17.7"	450	2.2	33	15	18x50.2
XZJ-ET003	10"	250	2.0	27	12	18×50.2
XZJ-ET004	10"	250	2.0	33	15	18x50.2
XZJ-ET005	9°	230	3.0	33	15	18x28.5
XZJ-ET006	13°	330	3.0	33	15	18×28.5
