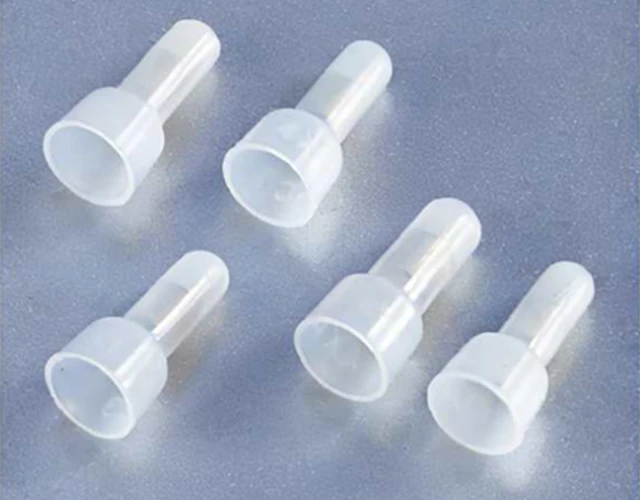

Material: The shell made from Nylon 66 confomming to UL94V-2,
with silver coated copper tube inside.
Usage: Remove the insulator on the ends of the wires,insert into the
line-pressing cap after connecting and to confim the metal wire
position is inside copper tube then tr pact with line-pressing clip.
Color: White(Natural)or black,Other colors available upon request.

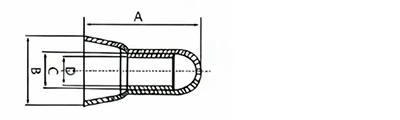

ITEM.No. |
A(mm) |
B(mm) |
Thread diameter incide C(mm) |
Brass tube diameter D(mm) |
Suitable wires |
|
| XZJCE-φ3 | 18.0 | 9 | 3.6 | 2.8 | 1.25 | 22-16 |
| XZJCE-φ4 | 21.0 | 9.5 | 3.9 | 3.0 | 2 | 16-14 |
| XZJCE-φ5 | 22.5 | 10.5 | 4.8 | 4.0 | 5.5 | 12-10 |
| XZJCE-φ6 | 24.0 | 12.0 | 5.6 | 4.8 | 8 | 8 |
| XZJCE-φ8 | 25.5 | 14.0 | 7.5 | 6.0 | 13 | 6 |
| XZJCE-φ10 | 29.5 | 15.5 | 9.3 | 7.8 | 16 | 4 |
