Material: UL approved Nylon 66,94V-2

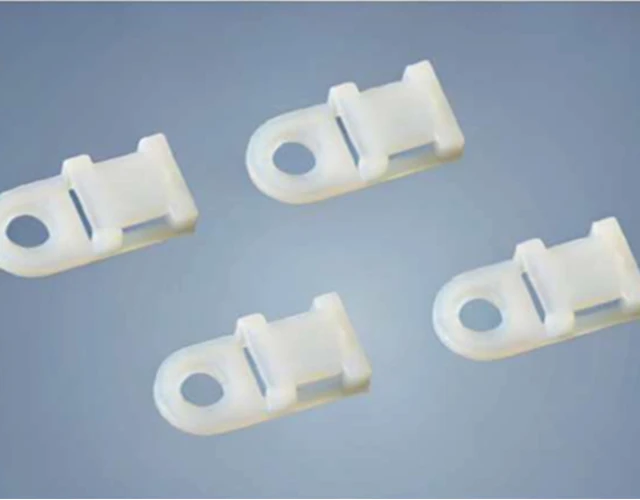

Application: This is a cable tie mount
with saddle design offers maximum
stability for securing bundled wires.
It has a hole for securing it to the
surface with a screw.
ITEM.NO |

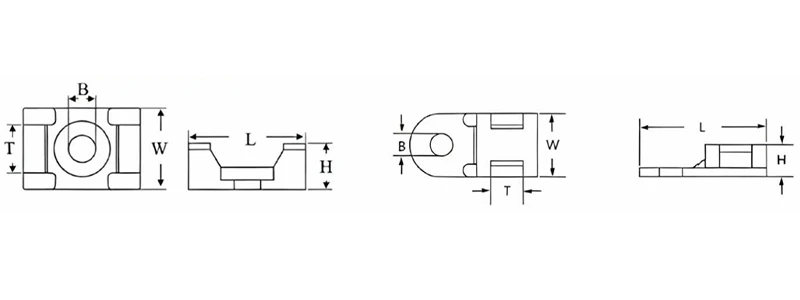

DIMENSION | LENGTH | DIAMETER | |||||||
| L(rnm) | L(inch) | W(mm) | W(inch) | H(mm) | H(inch) | T(mm) | T(inch) | B(mm) | B(inch) | |
| XHC-0 | 19 | 0.75" | 9.5 | 0.37" | 5 | 0.20" | 6.7 | 0.27" | 4.4 | 0.17" |
| XHC-1 | 15 | 0.60" | 10 | 0.40" | 7 | 0.28" | 4.8 | 0.19" | 4 | 0.16" |
| XHC-2-5 | 23 | 0.91" | 16 | 0.63" | 9 | 0.35” | 9 | 0.35" | 5 | 0.20" |
| XHC-2-6 | 23 | 0.91" | 16 | 0.63" | 9 | 0.35" | 9 | 0.35" | 6 | 0.24" |
