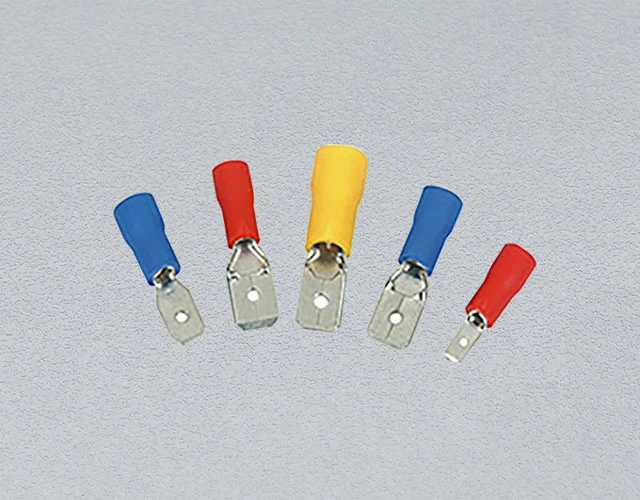

Description

Material: Brass

Product Dimensions

Conductor cross-section: 0.5~1.5mm² (US Wire Gauge 22-16) Maximum Current Imax = 10A

Item No.	NAMETAB	Thickness of material	DIMENSION
		Thickness of material	B	dΦ	DΦ	L	H
		mm	mm	mm	mm	mm	mm
MDD1.25-110(5)	0.5×2.8	0.5	2.8	1.70	4.3	17.7	10.0
MDD1.25-110(8)	0.8×2.8	0.8	2.8	1.70	4.3	17.7
MDD1.25-187(5)	0.5×4.75	0.5	4.75	1.70	4.3	18.5
MDD1.25-187(8)	0.8×4.75	0.8	4.75	1.70	4.3	18.5
MDD1.25-250	0.8×6.3	0.4	6.3	1.70	4.3	21.0

Conductor cross-section: 1.5~2.5mm² (US Wire Gauge 16-14) Maximum Current Imax = 15A

Item No.	NAMETAB	Thickness of material	DIMENSION
		Thickness of material	B	dΦ	DΦ	L	H
		mm	mm	mm	mm	mm	mm
MDD2-110(5)	0.5×2.8	0.5	2.8	2.3	4.3	17.7	10.0
MDD2-110(8)	0.8×2.8	0.8	2.8	2.3	4.3	17.7
MDD2-187(5)	0.5×4.75	0.5	4.75	2.3	4.3	18.5
MDD2-187(8)	0.8×4.75	0.8	4.75	2.3	4.3	18.5
MDD2-250	0.8×6.35	0.4	6.35	2.3	4.3	21.0

Conductor cross-section: 4~6mm² (US Wire Gauge 12-10) Maximum Current Imax = 24A

Item No.	NAMETAB	Thickness of material	DIMENSION
		Thickness of material	B	dΦ	DΦ	L	H
		mm	mm	mm	mm	mm	mm
MDD5.5-187	0.5×4.75	0.5	4.75	3.4	5.7	23.0	14.0
MDD5.5-250	0.8×6.3	0.4	6.3	3.4	5.7	23.0	14.0
