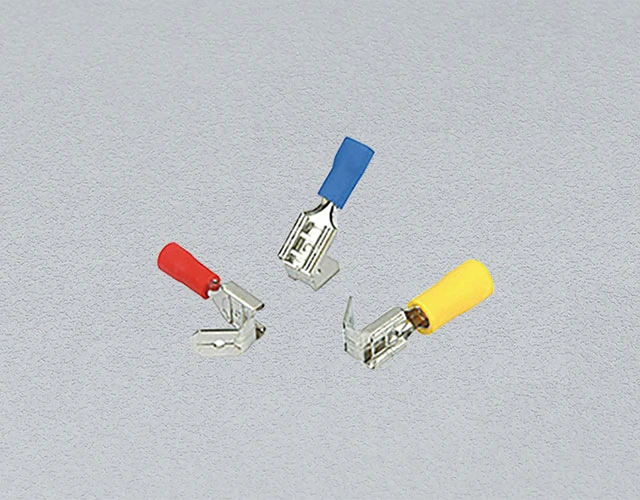

Description

Product Dimensions

Conductor cross-section: 0.5～1.5mm² (US wire gauge 22-16) Maximum current • Imax = 10A

Brass 0.4mm²

Item No.	NAMETAB	DIMENSION
	t	B	B1	H	DΦ	dΦ	L
	mm	mm	mm	mm	mm	mm	mm
PBDD1.25-250	0.8×6.35	7.4	6.3	10.0	3.8	1.7	21.5

Conductor cross-section: 1.5～2.5mm² (US wire gauge 16-14) Maximum current • Imax = 15A

Item No.	NAMETAB	DIMENSION
	t	B	B1	H	DΦ	dΦ	L
	mm	mm	mm	mm	mm	mm	mm
PBDD2-250	0.8×6.35	7.4	6.3	10.0	4.3	2.3	21.5

Conductor cross-section: 4～6mm² (US wire gauge 12-10) Maximum current • Imax = 24A

Item No.	NAMETAB	DIMENSION
	t	B	B1	H	DΦ	dΦ	L
	mm	mm	mm	mm	mm	mm	mm
PBDD5.5-250	0.8×6.35	7.4	6.3	14.0	5.7	3.4	25.0

Note: Copper-inlaid sleeves can be made according to customer specifications.
