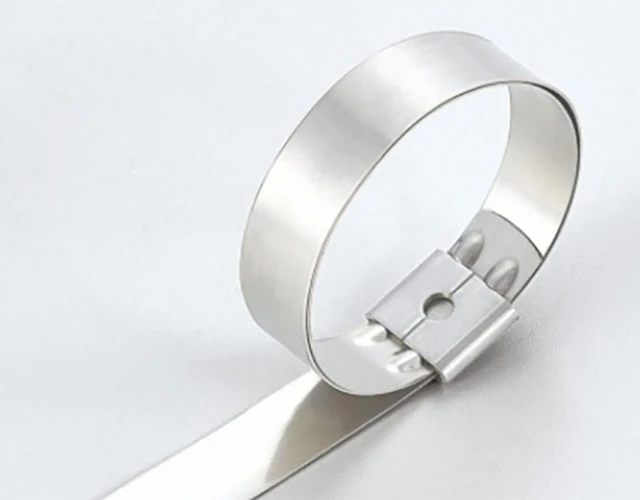

Throbbing Clamp( Enhanced type )
An enhanced heavy-duty clamp offering superior clamping force and corrosion resistance for industrial piping and equipment assembly.

Thickness: 0.6/0.8 mm

Width: 16/18 mm

Specification: 8-12~155-178

Description

Engineered for heavy-duty fastening challenges, our Enhanced Throbbing Clamp delivers superior clamping force and exceptional durability in demanding industrial environments. Constructed from high-grade stainless steel 201, 304, or 316, this robust clamp combines increased material thickness (0.6mm/0.8mm) with optimized width dimensions (16/18) to provide maximum tension resistance and long-term reliability. Perfect for securing large-diameter bundles, industrial piping, and heavy equipment assemblies, it maintains stable performance across extreme temperature conditions while offering outstanding corrosion resistance against chemicals, moisture, and environmental stressors. The enhanced design ensures secure, vibration-proof clamping for critical applications in construction, marine, and mechanical engineering projects.

Product Dimensions
Type Specification Width Approx Thickness Material Quality
JXPL010 8-12 16/18 0.6mm/0.8mm 201/304/316
JXPL020 10-16 16/18 0.6mm/0.8mm 201/304/316
JXPL030 13-19 16/18 0.6mm/0.8mm 201/304/316
JXPL040 10-23 16/18 0.6mm/0.8mm 201/304/316
JXPL050 11-25 16/18 0.6mm/0.8mm 201/304/316
JXPL060 10-22 16/18 0.6mm/0.8mm 201/304/316
JXPL070 11-25 16/18 0.6mm/0.8mm 201/304/316
JXPL080 14-27 16/18 0.6mm/0.8mm 201/304/316
JXPL090 18-32 16/18 0.6mm/0.8mm 201/304/316
JXPL100 21-38 16/18 0.6mm/0.8mm 201/304/316
JXPL110 25-44 16/18 0.6mm/0.8mm 201/304/316
JXPL120 35-51 16/18 0.6mm/0.8mm 201/304/316
JXPL130 38-57 16/18 0.6mm/0.8mm 201/304/316
JXPL140 40-64 16/18 0.6mm/0.8mm 201/304/316
JXPL150 46-70 16/18 0.6mm/0.8mm 201/304/316
JXPL160 52-76 16/18 0.6mm/0.8mm 201/304/316
JXPL170 59-82 16/18 0.6mm/0.8mm 201/304/316
JXPL180 65-89 16/18 0.6mm/0.8mm 201/304/316
JXPL190 76-92 16/18 0.6mm/0.8mm 201/304/316
JXPL200 78-101 16/18 0.6mm/0.8mm 201/304/316
JXPL210 84-108 16/18 0.6mm/0.8mm 201/304/316
JXPL220 91-114 16/18 0.6mm/0.8mm 201/304/316
JXPL230 105-127 16/18 0.6mm/0.8mm 201/304/316
JXPL240 118-140 16/18 0.6mm/0.8mm 201/304/316
JXPL250 130-152 16/18 0.6mm/0.8mm 201/304/316
JXPL260 143-165 16/18 0.6mm/0.8mm 201/304/316
JXPL270 155-178 16/18 0.6mm/0.8mm 201/304/316
