Tensile Strength: 225Ibs~270Ibs
Width: 4.6mm-10mm
Length: 150mm~800mm

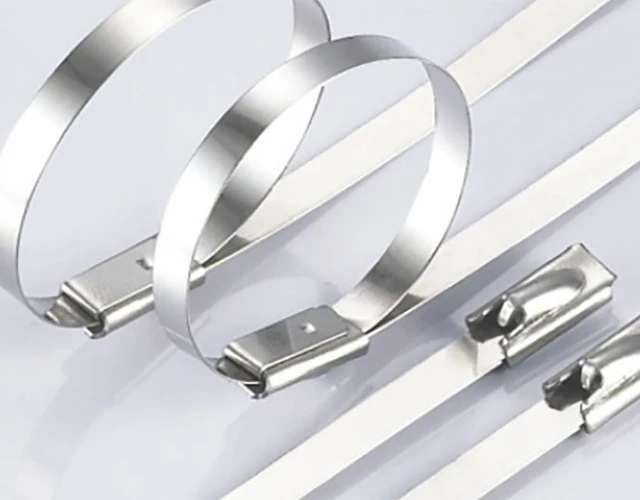

Engineered to outperform standard ties, our Stainless Steel Ball Lock Cable Ties offer a permanent, vibration-proof fastening solution for critical applications. The unique ball locking mechanism guarantees a one-time, irreversible lock that withstands constant stress and impact. Available in a range of stainless steel grades including 201, 304, and 316/316L, these ties deliver exceptional corrosion resistance against chemicals, moisture, and extreme temperatures from -60°C to 150°C. Ideal for securing heavy loads in marine, industrial, and chemical settings, they provide ultimate reliability for your most demanding cable and pipe management needs.
• All length are available, Stainless steel type: 201, 304, 316, 316L, Special sizes can be customized
• Characteristic: They have an unique ball locking mechanism that allow easily and quickly installedand not undone, High tensile strength; Non-flammability High resistance to acetic acid, alkali acidsulphuric acid.corrode ...etc
• Working temperature: -60℃~150℃
| Part No. | Approx.Length mm(inch) |
Approx.Width mm(inch) |
Max.Bundle Dia mm(inch) |
Min. loop Tensile Strength N(Ibs) |
| JXC-4×150 | 150(5.9) | 10(0.39) | 37(1.46) | 1000(225) |
| JXC-4×200 | 200(7.87) | 50(1.97) | ||
| JXC-4×250 | 250(9.84) | 63(2.48) | ||
| JXC-4×300 | 300(11.8) | 76(2.99) | ||
| JXC-4×350 | 350(13.78) | 89(3.5) | ||
| JXC-4×400 | 400(15.75) | 102(4.02) | ||
| JXC-4×450 | 450(17.72) | 115(4.53) | ||
| JXC-4×500 | 500(19.69) | 128(5.04) | ||
| JXC-4×550 | 550(21.65) | 141(5.55) | ||
| JXC-4×600 | 600(23.62) | 154(6.06) | ||
| JXC-4.6×150 | 150(5.9) | 10(0.39) | 37(1.46) | 1000(225) |
| JXC-4.6×200 | 200(7.87) | 50(1.97) | ||
| JXC-4.6×250 | 250(9.84) | 63(2.48) | ||
| JXC-4.6×300 | 300(11.8) | 76(2.99) | ||
| JXC-4.6×350 | 350(13.78) | 89(3.5) | ||
| JXC-4.6×400 | 400(15.75) | 102(4.02) | ||
| JXC-4.6×450 | 450(17.72) | 115(4.53) | ||
| JXC-4.6×500 | 500(19.69) | 128(5.04) | ||
| JXC-4.6×550 | 550(21.65) | 141(5.55) | ||
| JXC-4.6×600 | 600(23.62) | 154(6.06) | ||
| JXC-7.9×150 | 150(5.9) | 7.9(0.311) | 37(1.46) | 1200(270) |
| JXC-7.9×200 | 200(7.87) | 50(1.97) | ||
| JXC-7.9×250 | 250(9.84) | 63(2.48) | ||
| JXC-7.9×300 | 300(11.8) | 76(2.99) | ||
| JXC-7.9×350 | 350(13.78) | 89(3.5) | ||
| JXC-7.9×400 | 400(15.75) | 102(4.02) | ||
| JXC-7.9×450 | 450(17.72) | 115(4.53) | ||
| JXC-7.9×500 | 500(19.69) | 128(5.04) | ||
| JXC-7.9×550 | 550(21.65) | 141(5.55) | ||
| JXC-7.9×600 | 600(23.62) | 154(6.06) | ||
| JXC-7.9×650 | 650(25.59) | 167(6.57) | ||
| JXC-7.9×700 | 700(27.56) | 180(7.09) | ||
| JXC-7.9×750 | 750(29.53) | 191(7.52) | ||
| JXC-7.9×800 | 800(31.5) | 193(7.59) |
