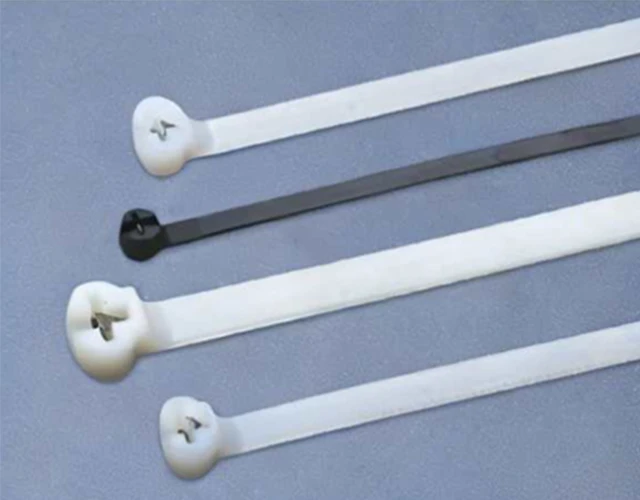

Nylon Stainless Steel Lock Tie

Material: Made by UL approved PA66 raw material and stainless steel.heat-resisting,erosion control,insulate well and not apt to age.Operating temperature: -25°C to 85°CColor: Natural(or white,standard

Tensile Strength: 18Ibs~123.7Ibs

Width: 3mm~10mm

Length: 100mm~450mm

Get Free Quote Downloads

Description

Material: Made by UL approved PA66 raw material and stainless steel.
heat-resisting,erosion control,insulate well and not apt to age.
Operating temperature: -25°C to 85°C
Color: Natural(or white,standard color),UV black and other colors are
available as requestd.

Product Dimensions

ITEM.No.	Specification	Approx.Length		Approx.Width		Max.Bundle Dia		MIN.Lop Tensile Strength		Porking Pcs/boo)
ITEM.No.	Specification	INCH	MM	INCH	MM	INCH	MM	LBS	KGS	Porking Pcs/boo)
XZJNS-1	3×100	3.94	100	0.118	3	0.87	22	18	8	200
XZJNS-2	4×150	5.91	150	0.157	4	1.38	35	36	18	100
XZJNS-3	4 X200	7.87	200	0.157	4	2.09	53	36	18	100
XZJNS-4	5×250	9.84	250	0.197	5	2.56	65	45	20	100
XZJNS-5	6×300	11.81	300	0.197	5	2.99	76	45	20	100
XZJNS-6	8×145	5.7	145	0.315	8	1.33	34	56.3	25	100
XZJNS-7	8×175	6.89	175	0.315	8	1.69	43	56.3	25	100
XZJNS-8	8×200	7.87	200	0.315	8	2.09	53	56.3	25	100
XZJNS-9	8×240	9.45	240	0.315	8	2.52	64	56.3	25	100
XZJNS-10	8×300	11.81	300	0.315	8	2.99	76	56.3	25	100
XZJNS-11	8X400	15.75	400	0.315	8	4.02	102	56.3	25	100
XZJNS-12	10X300	11.81	300	0.394	10	2.99	76	112.5	50	100
XZJNS-13	10×350	13.78	350	0.394	10	3.82	97	112.5	50	100
XZJNS-14	10×400	15.75	400	0.394	10	4.02	102	123.7	55	100
XZJNS-15	10×450	17.72	450	0.394	10	4.72	120	123.7	55	100
