Description

Material: made tom UL nylon 66.
USAGE: relessable

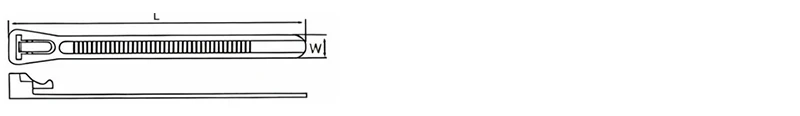

Product Dimensions

ITEM No.	L		W mm	Bundle die(MM)	HSIE SHNGiH
ITEM No.	Inch	mm	W mm	Bundle die(MM)	LBS	KGS
XZJM-8x150	6.0°	150	3.5	6-35	29	13
XZJM-4x200	8.0°	200	3.5	6-45	29	13
XZJM-5×150	6.0°	150	4.8	6-35	40	18
XZJM-5200	80°	200	4.8	6-45	40	18
XZIM-5x300	12°	300	48	6-70	40	22
XZJM-8x150	60°	150	7.5	8-30	50	22
XZJM-8x200	80°	200	7.5	845	50	22
XZJM-8x250	10°	250	7.5	8-60	50	22
XZJM-8x300	12"	300	7.5	8-75	50	22
XZIM-8x350	14"	350	7.5	8-90	50	22
XZJM-8x400	16"	400	7.5	8-105	50	22
XZJM-8x450	17.7"	450	7.5	8-120	50	22
XZJM 8x500	19.7"	500	7.5	8-135	50	22
XZJM-15×240	9.45°	240	15	10-50	88	40

Releasable Nylon Cable Tie (Reverse Thread Type)
ITEM.No.	L		W mm	MAXBundle dla(mm)	TENSILE STRENGTH
ITEM.No.	Inch	mm	W mm	MAXBundle dla(mm)	LBS	KGS
XZJM-350RT	135/8"	350	8.0	90	50	22
XZJM-400RT	153/4”	400	8.0	105	50	22
XZJM-450RT	173/4°	450	8.0	130	50	22
XZJM-500RT	1911/16"	500	8.0	150	65	30
XZJM-550RT	2111/16"	550	8.0	160	65	30

Releasable Nylon Cable Tie (External Buckle Type)
ITEM.No.	L		W mm	MAXBundle dia(mm)	TENSILE STRENGTH
ITEM.No.	Inch	mm	W mm	MAXBundle dia(mm)	LBS	KGS
XZJM-100RRT	4"	100	2.5	22	18	8
XZJM-145RRT	6"	150	2.5	35	18	8
XZJM-150RRT	6"	150	3.5	35	40	18

Releasable Nylon Cable Tie (Reverse Thread Type)
ITEM.No.	L		W mm	MAXBundle dla(mm)	TENSILE STRENGTH
ITEM.No.	Inch	mm	W mm	MAXBundle dla(mm)	LBS	KGS
XZJM-300RRT	11s/8"	300	12.7	82	250	114
XZJM-400RRT	153/4"	400	12.7	105	250	114
XZJM-450RRT	173/4°	450	9.0	118	175	80
XZJM-550RRT	2111/16"	550	9.0	160	175	80
XZJM-780RRT	303/4"	780	12.7	230	250	114
