Tensile Strength: 270Ibs~337Ibs
Width: 12mm~16mm
Length: 150mm~1000mm

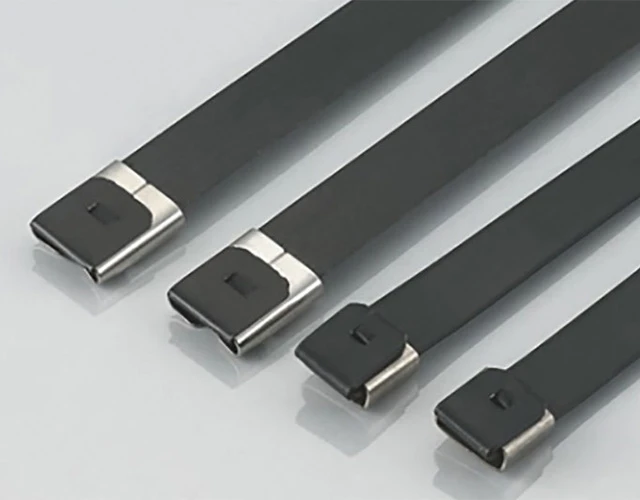

Our Polyester/Epoxy Coated O Lock Ties offer a robust and secure fastening solution for demanding electrical and industrial applications. The distinctive O-shaped lock head provides a wide, stable engagement area, ensuring a permanent and vibration-resistant grip on the cable. The full Polyester/Epoxy coating not only protects against corrosion and chemicals but also provides essential electrical insulation and prevents abrasion on sensitive surfaces. This makes them an excellent, durable choice for organized cable management in control panels, outdoor fixtures, and data centers.
• Material: Stainless steel 201, 304, 316, 316L, Polyester/Epoxy coated; All length color are available;
• Characteristic: They have a unique hall locking with a plastic jetting mechanism that allows easy and quick installation and not undone, high tensile strength; Non-flammability, O-locked,easy-quick application, High resistance to acetic acid, alkali acid, sulphuric acid, corrosion...etc.
• Operating temperature: -40°C~85°C
| Part No. | Approx.Length mm(inch) |
Approx.Width mm(inch) |
Max.Bundle Dia. mm(inch) |
Min.loop Tensile Strength N(Ibs) |
| JXOP-12×150 | 150(5.9) | 12(0.47) | 37(1.46) | 1200(270) |
| JXOP-12×200 | 200(7.87) | 50(1.97) | ||
| JXOP-12×250 | 250(9.84) | 63(2.48) | ||
| JXOP-12×300 | 300(11.8) | 76(2.99) | ||
| JXOP-12×350 | 350(13.78) | 89(3.5) | ||
| JXOP-12×400 | 400(15.75) | 102(4.02) | ||
| JXOP-12×450 | 450(17.72) | 115(4.53) | ||
| JXOP-12×500 | 500(19.69) | 128(5.04) | ||
| JXOP-12×550 | 550(21.65) | 141(5.55) | ||
| JXOP-12×600 | 600(23.62) | 154(6.06) | ||
| JXOP-12×650 | 650(25.6) | 167(6.57) | ||
| JXOP-12×700 | 700(27.6) | 180(7.09) | ||
| JXOP-12×800 | 800(31.5) | 193(7.59) | ||
| JXOP-16×200 | 200(7.87) | 16(0.63) | 50(1.97) | 1500(337) |
| JXOP-16×250 | 250(9.84) | 63(2.48) | ||
| JXOP-16×300 | 300(11.8) | 76(2.99) | ||
| JXOP-16×350 | 350(13.78) | 89(3.5) | ||
| JXOP-16×400 | 400(15.75) | 102(4.02) | ||
| JXOP-16×450 | 450(17.72) | 115(4.53) | ||
| JXOP-16×500 | 500(19.69) | 128(5.04) | ||
| JXOP-16×550 | 550(21.65) | 141(5.55) | ||
| JXOP-16×600 | 600(23.62) | 154(6.06) | ||
| JXOP-16×650 | 650(25.59) | 167(6.57) | ||
| JXOP-16×700 | 700(27.56) | 180(7.09) | ||
| JXOP-16×750 | 750(29.53) | 191(7.52) | ||
| JXOP-16×800 | 800(31.5) | 193(7.59) | ||
| JXOP-16×1000 | 1000(39.37) | 206(8.11) |
