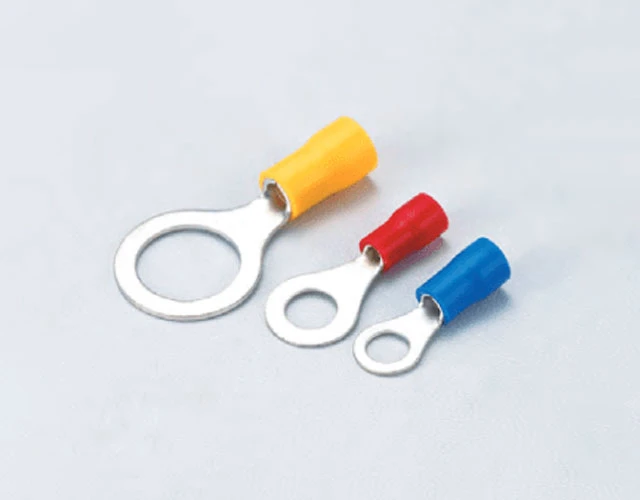

Description

Product Dimensions

Size of cable: 0.5~1.5mm² (American standard 22~16) Max.Curent=19A

Item No.		Dimension							Color
		U.S.standard screw bolt	Diameter	B	L	F	H	DΦ
		U.S.standard screw bolt	D2(mm)	mm	mm	mm	mm	mm
RV	1.25-3.2	#4	3.2	5.7	17.8	4.95	10.0	4.3	Red
RV	1.25-3.7S	#6	3.7	5.7	17.8	4.95
RV	1.25-3.7M	#6	3.7	6.6	20.1	6.3
RV	1.25-3.7L	#6	3.7	8.0	21.5	7.0
RV	1.25-4S	#8	4.3	6.6	20.1	6.3
RV	1.25-4L	#8	4.3	8.0	21.5	7.0
RV	1.25-5	#10	5.3	8.0	21.5	7.0
RV	1.25-6	1/4	6.5	11.6	27.5	11.1
RV	1.25-8	5/16	8.4	11.6	27.5	11.1
RV	1.25-10	3/8	10.5	13.6	31.6	13.9

Sze of cable: 1.5~2.5mm² (American standard 16~14 Max.Current=27A

Item No.	Dimension							Color
	U.S.standard screw bolt	Diameter	B	L	F	H	DΦ
	U.S.standard screw bolt	D2(mm)	mm	mm	mm	mm	mm
RV2-3.2	#4	3.2	6.6	17.8	4.3	10.0	4.9	Blue
RV2-3.7S	#6	3.7	6.6	17.8	4.3
RV2-3.7M	#6	3.7	6.6	21.0	7.0
RV2-3.7L	#6	3.7	8.5	22.5	7.75
RV2-4S	#8	4.3	6.6	21.0	7.0
RV2-4L	#8	4.3	8.5	22.5	7.75
RV2-5S	#10	5.3	8.5	22.5	7.75
RV2-5L	#10	5.3	9.5	22.5	7.25
RV2-6	1/4	6.5	12.0	27.6	11.0
RV2-8	5/16	8.4	12.0	27.6	11.0
RV2-10	3/8	10.5	13.6	30.2	13.9

Size of cable:2.5~4mm²(American standard 14~12) Max.Current=37A

Item No.	Dimension							Color
	U.S.standard screw bolt	Diameter	B	L	F	H	DΦ
	U.S.standard screw bolt	D2(mm)	mm	mm	mm	mm	mm
RV3.5-1	#8	4.3	8.0	24.5	7.7	12.5	6.2	Black
RV 3.5-5S	#10	5.3	8.0	24.5	7.7
RV3.5-5L	#10	5.3	12.0	27.9	7.7
RV3.5-6	1/4	6.5	12.0	27.9	7.7

Size of cable:4~6mm²(American standard 12~10) Max.Current=48A

Item No.	Dimension							Color
	U.S.standard screw bolt	Diameter	B	L	F	H	DΦ
	U.S.standard screw bolt	D2(mm)	mm	mm	mm	mm	mm
RV5.5-3.7	#6	3.7	7.2	21.4	5.9	12.5	6.7	Yellow
RV5.5-4	#8	4.3	72	21.4	5.9
RV5.5-4	#8	4.3	9.5	25.5	8.3
RV5.5-5	#10	5.3	9.5	25.5	8.3
RV5.5-6	1/4	6.5	12.0	31.5	13.0
RV5.5-8	5/16	8.4	15.0	33.7	13.7
RV5.5-10	3/8	10.5	15.0	33.7	13.7
RV5.5-12	1/2	13.0	19.2	38.1	16.0
