Description

Material: Copper

Product Dimensions

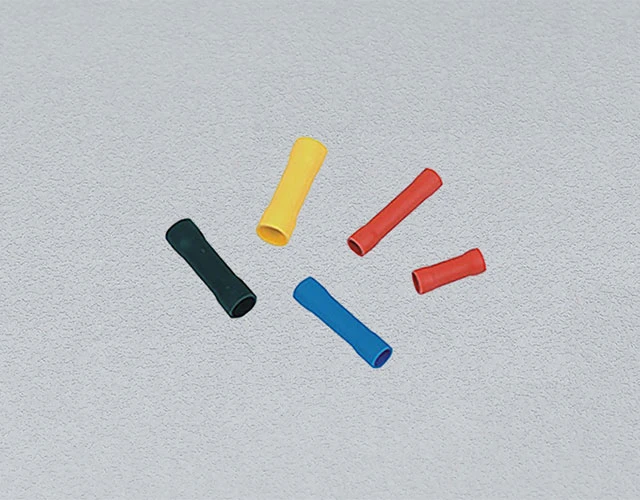

Insulated Vinyl Butt Connectors

Item No.	DIMENSION					Imax	INSULATLON color
	A, W, G	mm²	B	dΦ	L
	A, W, G	mm²	mm	mm	mm
BV0.75	22-18	0.5-1.0	15.0	1.7	25.5	19A	Red
BV1.25	22-16	0.75-1.5	15.0	1.9	26.0	19A	Red
BV2	16~14	1.5-2.5	15.0	2.3	26.0	27A	Blue
BV3.5	14-12	2.5-4	15.0	3.0	26.0	37A	Black
BV5.5	12-10	4-6	15.0	3.4	26.0	48A	Yellow
BV8	#8	6-10	21.0	4.5	35.0	62A	Red
BV14	#6	10-16	26.0	5.8	42.0	88A	Blue
BV22	#4	16-25	29.0	7.7	50.0	115A	Yellow

Insulated Parallel Connectors

Item No.	DIMENSION					Imax	INSULATLON color
	A, W, G	mm²	B	dΦ	L
	A, W, G	mm²	mm	mm	mm
PVT1.25	22-16	0.5-15	8.0	1.9	16.0	19A	Red
PVT2	16-14	1.5-2.05	8.0	2.3	16.0	27A	Blue
PVT5.5	12-10	4-6	8.5	3.4	20.5	48A	Yellow
