Description

Material:

Insert: brass

Plastic: PE,PP or PA

Color: Natural, White

Technical Data:

Max.Operating temperature: -30℃～+110℃ for PA

According to: EN60998-1 EN60998-2-1

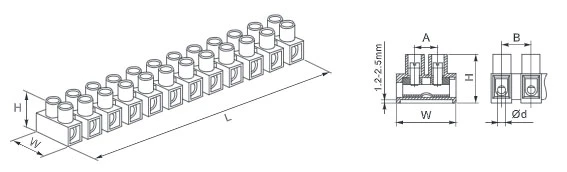

Product Dimensions

Item No.	Rated current	Section size	Dimension
Item No.	A	mm²	L (mm)	W (mm)	H (mm)	A (mm)	B (mm)	⌀d (mm)
H-E8	17.5	1.5	95.37	16.9	15.05	6.3	8.2	2.9
H-E10	24	2.5	117	20.5	16.8	9.6	10.1	3.2
H-E12	41	6	140.1	23.9	18.8	10	12.2	4.2
H-E14	57	10	158	25.7	25.15	10.75	13.6	5
