Description

• Material: PA, PE or PP

• Color: Natural,Black,White

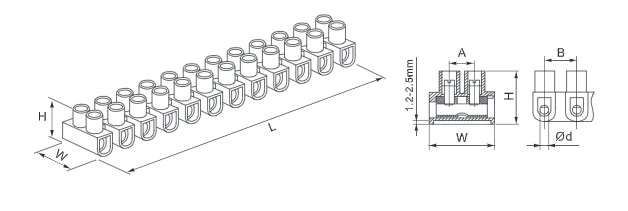

Product Dimensions

Item No.	Rated current	Section size	Dimension
Item No.	A	mm²	L (mm)	W (mm)	H (mm)	A (mm)	B (mm)	⌀d (mm)
W-3	3	2.5/4	92	14.9	11.70	4.1	8	3.0
W-6	6	6	110	16.5	12.85	6.6	9.6	3.3
W-10	10	10	127.7	19.35	15.4	7.1	11.1	3.71
W-15	15	12	134	22.3	17.2	8.3	11.5	4.2
W-20	20	14	144	22.5	174	8.65	12.2	4.5
W-30	30	16	163	24.9	19	9.1	14.1	5.5
W-60	60	25	187	28.65	21.4	11.2	16	6.3
W-80	80	30	208	35.8	29.15	12.2	18	7.4
