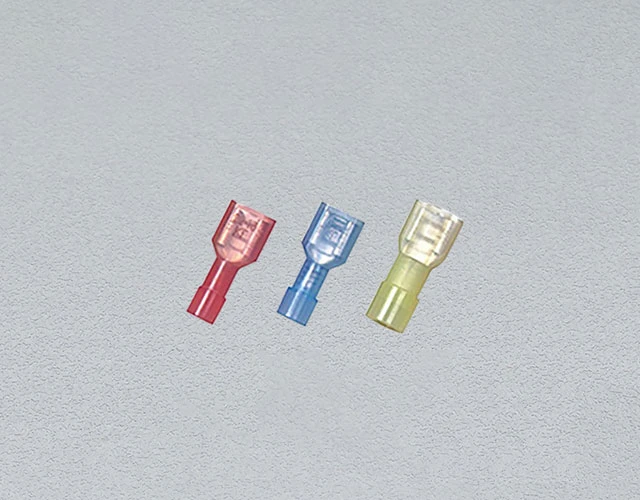

Description

Material: Brass insulation

Sleeve material: Nylon

Product Dimensions

Item No.	NAMETAB	DIMENSION						Wire range A.W.G mm	Color
Item No.	NAMETAB	W	F	L	B	DΦ	CΦ	Wire range A.W.G mm	Color
FDFN1.25-250	0.8×6.35	6.6	7.3	22.0	11.0	4.0	1.7	22-16 A.W.G 0.5-1.5mm²	red
FDFN2-250	0.8×6.35	6.6	7.3	22.0	11.0	4.5	2.3	16-14 A.W.G 1.5-2.5mm²	blue
FDFN5.5-250	0.8×6.35	6.6	7.3	24.0	13.0	6.3	3.4	12-10 A.W.G 4-6mm²	yellow
FDFN1.25-187	0.5×4.75 0.8×4.75	5.0	6.5	20.2	11.0	4.0	1.7	22-16 A.W.G	red
FDFN2-187	0.5×4.75 0.8×4.75	5.0	6.5	20.2	11.0	4.5	2.3	16-14	blue
FDFN1.25-110	0.5×2.8 0.8×2.8	3.2	6.4	19.2	11.0	4.0	1.7	22-16	red
