Tensile Strength: 18Ibs~120Ibs
Width: 2.6mm~7.6mm
Length: 100mm~300mm

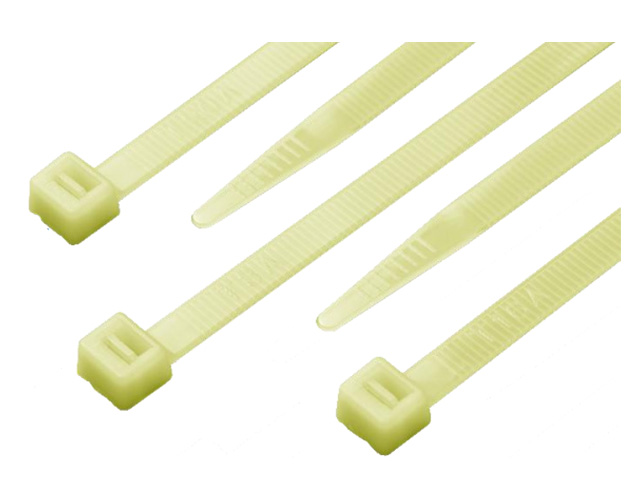

Material: Made of UL-approved nylon 46 (PA46) material. It has a fire rating of HB or 94V - 2, and features high - temperature resistance, acid resistance, corrosion resistance, resistance to aging, and high load - bearing capacity.
Application temperature: - 40°C ~ 230°C.
Color: Usually available in natural color (beige) and black. Customization of other special colors is supported.
Feature: Suitable for use in special high - temperature environments, such as high - power motors, ovens, furnaces, and reaction kettles.
| Size | Width | Lenght | Max.Bundle Dia. | Min.Loop Tesile Strength | ||||
| mm | inch | mm | inch | mm | inch | kgs | lbs | |
| 3*100 | 2.6 | 0.1 | 100 | 3.94 | 22 | 0.87 | 8 | 18 |
| 3*150 | 2.6 | 0.1 | 150 | 5.91 | 35 | 1.38 | 8 | 18 |
| 4*150 | 3.5 | 0.14 | 150 | 5.91 | 35 | 1.38 | 18 | 40 |
| 4*200 | 3.5 | 0.14 | 200 | 7.87 | 53 | 2.09 | 18 | 40 |
| 4*300 | 3.5 | 0.14 | 300 | 11.81 | 80 | 3.15 | 18 | 40 |
| 5*200 | 4.6 | 0.18 | 200 | 7.87 | 53 | 2.09 | 22 | 50 |
| 5*250 | 4.7 | 0.19 | 250 | 9.84 | 65 | 2.56 | 22 | 50 |
| 5*300 | 4.6 | 0.18 | 300 | 11.81 | 82 | 3.23 | 22 | 50 |
| 5*350 | 4.7 | 0.19 | 350 | 13.78 | 90 | 3.54 | 22 | 50 |
| 8*200 | 7.6 | 0.3 | 200 | 7.87 | 50 | 1.97 | 55 | 120 |
| 8*250 | 7.6 | 0.3 | 250 | 9.84 | 53 | 2.09 | 55 | 120 |
| 8*300 | 7.6 | 0.3 | 300 | 11.81 | 80 | 3.15 | 55 | 120 |
