Tensile Strength: 18Ibs~120Ibs
Width: 2.5mm~7.6mm
Length: 100mm~300mm

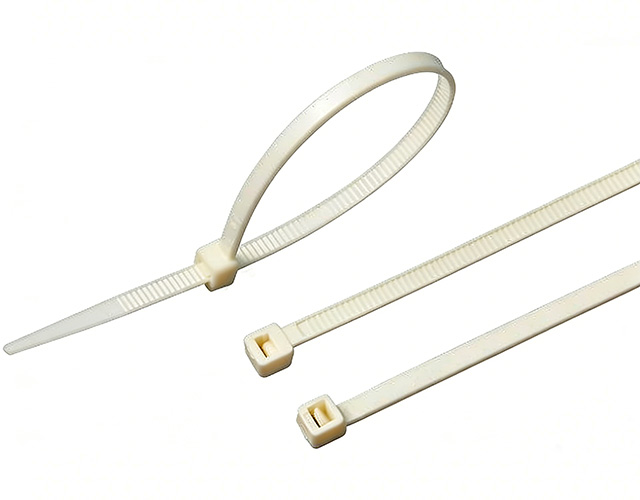

Material: Made of UL-approved nylon 6 or 66 materials. It has a fire rating of 94V - 0, and features acid resistance, corrosion resistance, good insulation, resistance to aging, and high load - bearing capacity.
Applicable temperature range: - 40°C to 85°C.
Colors: Ivory or black. Customization of special colors is supported.
Feature: are centered on the highest flame-retardant rating (vertical combustion self-extinguishing with no dripping ignition risk), combined with high strength, chemical resistance, and high-temperature tolerance, widely applied in scenarios with strict fire safety requirements such as electronics, automotive, aerospace, and construction industries, ensuring secure cable bundling and equipment safety.
| Size | Width | Lenght | Max.Bundle Dia. | Min.Loop Tesile Strength | ||||
| mm | inch | mm | inch | mm | inch | kgs | lbs | |
| 3*100 | 2.5 | 0.1 | 100 | 3.94 | 22 | 0.87 | 8 | 18 |
| 4*200 | 3.5 | 0.14 | 200 | 7.87 | 53 | 2.09 | 18 | 40 |
| 4*300 | 3.5 | 0.14 | 300 | 11.81 | 80 | 3.15 | 18 | 40 |
| 5*200 | 4.6 | 0.18 | 200 | 7.87 | 53 | 2.09 | 22 | 50 |
| 5*250 | 4.7 | 0.19 | 250 | 9.84 | 80 | 3.15 | 22 | 50 |
| 5*300 | 4.6 | 0.18 | 300 | 11.81 | 82 | 3.23 | 22 | 50 |
| 5*350 | 4.7 | 0.19 | 350 | 13.78 | 90 | 3.54 | 22 | 50 |
| 8*200 | 7.6 | 0.3 | 200 | 7.87 | 50 | 1.97 | 55 | 120 |
| 8*250 | 7.6 | 0.3 | 250 | 9.84 | 63 | 2.48 | 55 | 120 |
| 8*300 | 7.6 | 0.3 | 300 | 11.81 | 80 | 3.15 | 55 | 120 |
