Tensile Strength: 252Ibs~405Ibs
Width: 7mm~12mm
Length: 150mm~800mm

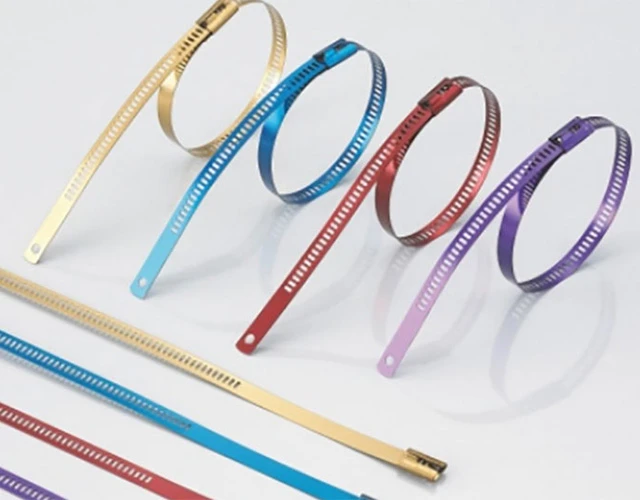

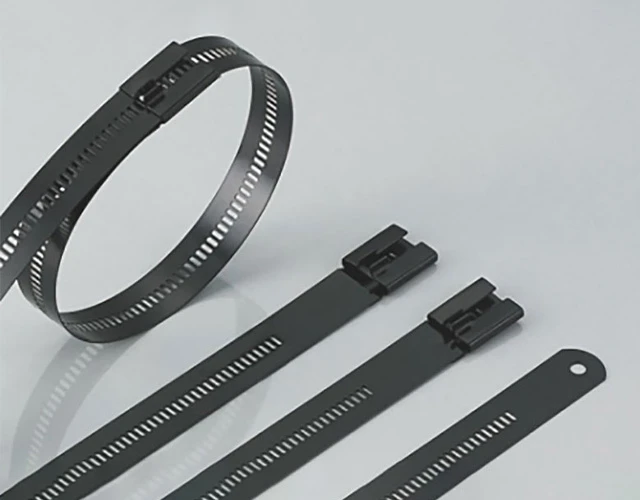

For maximum security in critical applications, our Polyester/Epoxy Coated Multi Barb Lock Ties feature an advanced locking system with multiple engagement points. This creates an ultra-reliable, vibration-resistant bond with a tensile strength of 250 lbs, engineered to handle heavy loads in dynamic settings. The full Polyester/Epoxy encapsulation provides insulation and corrosion protection, making these ties essential for harsh environments in oil & gas, marine engineering, and heavy machinery where failure is not an option.
• All length are available, Stainless steel type: 201, 304, 316, 316L, Special sizes can be customized;
• Polyester/Epoxy Coated, High corrosion resistant, multi barb-lock type, Good loop tensile strength can touch 250 lbs;
• Outdoor and indoor use, ldeal for applying in telecommunication, electricity, shipbuilding and oil & gas industry;
• Working temperature: -40°C~85°C
| Part No. | Approx.Length mm(inch) |
Approx.Width mm(inch) |
Max.Bundle Dia mm(inch) |
Min. loop Tensile Strength N(Ibs) |
| JXDP-7×150 | 150(5.9) | 7(0.276) | 33(1.3) | 1120(252) |
| JXDP-7×225 | 225(8.86) | 57(2.2) | ||
| JXDP-7×300 | 300(11.8) | 81(3.2) | ||
| JXDP-7×335 | 335(13.2) | 92(3.6) | ||
| JXDP-7×400 | 400(15.7) | 113(4.4) | ||
| JXDP-7×450 | 450(17.7) | 129(5.1) | ||
| JXDP-7×490 | 490(19.3) | 141(5.6) | ||
| JXDP-7×550 | 550(21.7) | 161(6.3) | ||
| JXDP-7×600 | 600(23.6) | 176(6.9) | ||
| JXDP-7×650 | 650(25.6) | 192(7.6) | ||
| JXDP-7×700 | 700(27.6) | 208(8.2) | ||
| JXDP-7×750 | 750(29.5) | 224(8.8) | ||
| JXDP-7×800 | 800(31.5) | 240(9.4) | ||
| JXDP-12×150 | 150(5.9) | 12(0.472) | 33(1.3) | 1800(405) |
| JXDP-12×225 | 225(8.86) | 57(2.2) | ||
| JXDP-12×300 | 300(11.8) | 81(3.2) | ||
| JXDP-12×335 | 335(13.2) | 92(3.6) | ||
| JXDP-12×400 | 400(15.7) | 113(4.4) | ||
| JXDP-12×450 | 450(17.7) | 129(5.1) | ||
| JXDP-12×490 | 490(19.3) | 141(5.6) | ||
| JXDP-12×550 | 550(21.7) | 161(6.3) | ||
| JXDP-12×600 | 600(23.6) | 176(6.9) | ||
| JXDP-12×650 | 650(25.6) | 192(7.6) | ||
| JXDP-12×700 | 700(27.6) | 208(8.2) | ||
| JXDP-12×750 | 750(29.5) | 224(8.8) | ||
| JXDP-12×800 | 800(31.5) | 240(9.4) |
