Tensile Strength: 224Ibs~404Ibs
Width: 6.5mm~20mm
Length: 150mm~1000mm

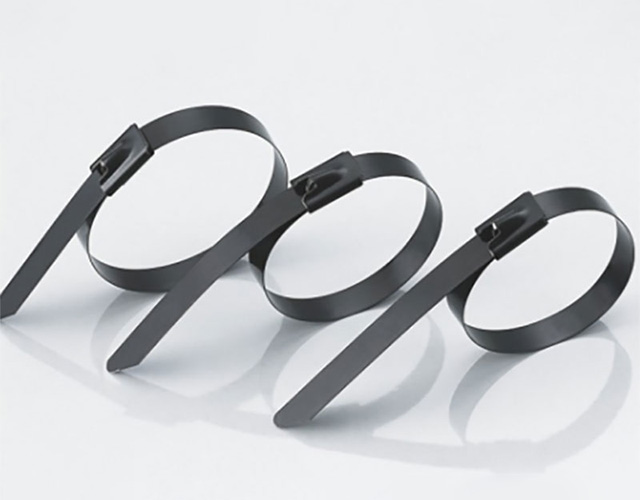

Designed for efficiency, our Polyester/Epoxy Coated Wing Lock Ties enable quick, tool-free installation with exceptional grip. The winged head provides enhanced leverage for easy tightening, even with gloved hands, while the full Polyester/Epoxy sheath offers complete protection against moisture, chemicals, and abrasion. Perfect for fast-paced industrial maintenance, outdoor electrical work, and assembly lines, these ties deliver the full strength of stainless steel while ensuring a non-marring, insulated hold in demanding applications.
• Material: Stainless steel 201, 304, 316, 316L, Polyester/Epoxy coated; All length color are available;
• Characteristic: They have a unique hall locking with a plastic jetting mechanism that allows easy and quick installation and not undone, high tensile strength; Non-flammability, Wing locked ,easy-quick application, High resistance to acetic acid, alkali acid, sulphuric acid, corrosion..etc.
• Operating temperature: -40℃~85℃
| Part No. | Approx.Length mm(inch) |
Approx.Width mm(inch) |
Max.Bundle Dia mm(inch) |
Min. loop Tensile Strength N(Ibs) |
| JXLP-6.5×150 | 150(5.9) | 6.5(0.26) | 37(1.46) | 1000 |
| JXLP-6.5×200 | 200(7.87) | 50(1.97) | ||
| JXLP-6.5×250 | 250(9.84) | 63(2.48) | ||
| JXLP-6.5×300 | 300(11.8) | 76(2.99) | ||
| JXLP-6.5×350 | 350(13.78) | 89(3.5) | ||
| JXLP-6.5×400 | 400(15.75) | 102(4.02) | ||
| JXLP-6.5×450 | 450(17.72) | 115(4.53) | ||
| JXLP-6.5×500 | 500(19.69) | 128(5.04) | ||
| JXLP-6.5×550 | 550(21.65) | 141(5.55) | ||
| JXLP-6.5×600 | 600(23.62) | 154(6.06) | ||
| JXLP-6.5×650 | 650(25.59) | 167(6.57) | ||
| JXLP-6.5×700 | 700(27.56) | 180(7.09) | ||
| JXLP-7.9×150 | 150(5.9) | 7.9(0.31) | 37(1.46) | 1000 |
| JXLP-7.9×200 | 200(7.87) | 50(1.97) | ||
| JXLP-7.9×250 | 250(9.84) | 63(2.48) | ||
| JXLP-7.9×300 | 300(11.8) | 76(2.99) | ||
| JXLP-7.9×350 | 350(13.78) | 89(3.5) | ||
| JXLP-7.9×400 | 400(15.75) | 102(4.02) | ||
| JXLP-7.9×450 | 450(17.72) | 115(4.53) | ||
| JXLP-7.9×500 | 500(19.69) | 128(5.04) | ||
| JXLP-7.9×550 | 550(21.65) | 141(5.55) | ||
| JXLP-7.9×600 | 600(23.62) | 154(6.06) | ||
| JXLP-7.9×650 | 650(25.59) | 167(6.57) | ||
| JXLP-7.9×700 | 700(27.56) | 180(7.09) | ||
| JXLP-10×150 | 150(5.9) | 10(0.39) | 37(1.46) | 1200(270) |
| JXLP-10×200 | 200(7.87) | 50(1.97) | ||
| JXLP-10×250 | 250(9.84) | 63(2.48) | ||
| JXLP-10×300 | 300(11.8) | 76(2.99) | ||
| JXLP-10×350 | 350(13.78) | 89(3.5) | ||
| JXLP-10×400 | 400(15.75) | 102(4.02) | ||
| JXLP-10×450 | 450(17.72) | 115(4.53) | ||
| JXLP-10×500 | 500(19.69) | 128(5.04) | ||
| JXLP-10×550 | 550(21.65) | 141(5.55) | ||
| JXLP-10×600 | 600(23.62) | 154(6.06) | ||
| JXLP-10×650 | 650(25.59) | 167(6.57) | ||
| JXLP-12.7×150 | 150(5.9) | 12.7(0.5) | 37(1.46) | 1200(270) |
| JXLP-12.7×200 | 200(7.87) | 50(1.97) | ||
| JXLP-12.7×250 | 250(9.84) | 63(2.48) | ||
| JXLP-12.7×300 | 300(11.8) | 76(2.99) | ||
| JXLP-12.7×350 | 350(13.78) | 89(3.5) | ||
| JXLP-12.7×400 | 400(15.75) | 102(4.02) | ||
| JXLP-12.7×450 | 450(17.72) | 115(4.53) | ||
| JXLP-12.7×500 | 500(19.69) | 128(5.04) | ||
| JXLP-12.7×550 | 550(21.65) | 141(5.55) | ||
| JXLP-12.7×600 | 600(23.62) | 154(6.06) | ||
| JXLP-12.7×650 | 650(25.59) | 167(6.57) | ||
| JXLP-12.7×700 | 700(27.56) | 180(7.09) | ||
| JXLP-16×200 | 200(7.87) | 16(0.63) | 50(1.97) | 1500(337) |
| JXLP-16×250 | 250(9.84) | 63(2.48) | ||
| JXLP-16×300 | 300(11.8) | 76(2.99) | ||
| JXLP-16×350 | 350(13.78) | 89(3.5) | ||
| JXLP-16×400 | 400(15.75) | 102(4.02) | ||
| JXLP-16×450 | 450(17.72) | 115(4.53) | ||
| JXLP-16×500 | 500(19.69) | 128(5.04) | ||
| JXLP-16×550 | 550(21.65) | 141(5.55) | ||
| JXLP-16×600 | 600(23.62) | 154(6.06) | ||
| JXLP-16×650 | 650(25.59) | 167(6.57) | ||
| JXLP-16×700 | 700(27.56) | 180(7.09) | ||
| JXLP-16×750 | 750(29.53) | 191(7.52) | ||
| JXLP-16×800 | 800(34.5) | 193(7.59) | ||
| JXLP-16×1000 | 1000(39.37) | 206(8.11) | ||
| JXLP-20×150 | 150(5.9) | 20(0.79) | 37(1.46) | 1800 |
| JXLP-20×200 | 200(7.87) | 50(1.97) | ||
| JXLP-20×250 | 250(9.84) | 63(2.48) | ||
| JXLP-20×300 | 300(11.8) | 76(2.99) | ||
| JXLP-20×350 | 350(13.78) | 89(3.5) | ||
| JXLP-20×400 | 400(15.75) | 102(4.02) | ||
| JXLP-20×450 | 450(17.72) | 115(4.53) | ||
| JXLP-20×500 | 500(19.69) | 128(5.04) | ||
| JXLP-20×550 | 550(21.65) | 141(5.55) | ||
| JXLP-20×600 | 600(23.62) | 154(6.0) | ||
| JXLP-20×650 | 650(25.59) | 167(6.57) | ||
| JXLP-20×700 | 700(27.56) | 180(7.09) | ||
| JXLP-20×750 | 750(29.53) | 191(7.52) | ||
| JXLP-20×800 | 800(31.5) | 193(7.59) | ||
| JXLP-20×1000 | 1000(39.37) | 206(8.11) |
