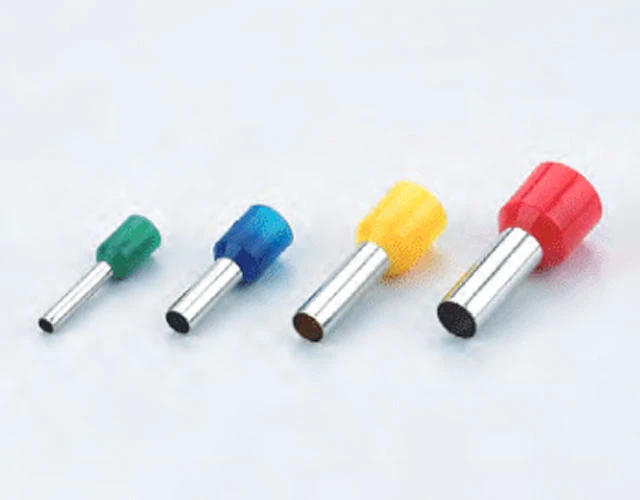

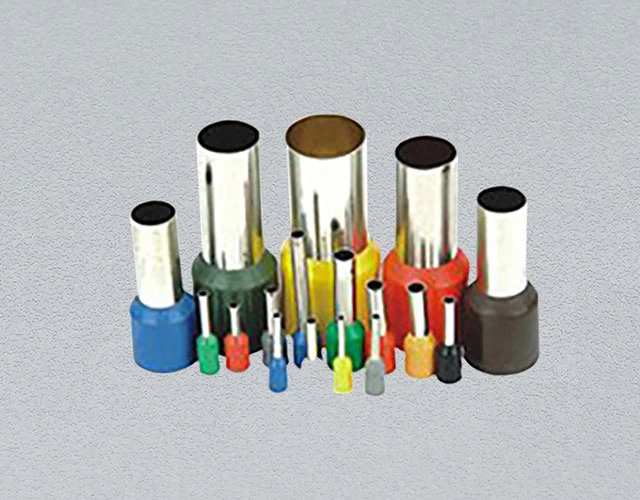

Description

Product Dimensions

Wire width A.W.G mm²	Item No.	DIMENSION						French colors German colors	Use crimping tool model
		F	L	W	B	D	C
24 A.W.G 0.34mm²	E0306	6.0	10.0	1.9	4.0	1.1	0.8
	E0308	8.0	12.0
22 A.W.G 0.5mm²	E0506	6.0	12.0	2.6	6.0	1.3	1.0	White Orange	Using 0.5mm jaws
	E0508	8.0	14.0
	E0510	10.0	16.0
	E0512	12.0	18.0
20 A.W.G 0.75mm²	E7506	6.0	12.3 14.3	2.8	6.3	1.5	1.2	Blue White	Using 0.75mm jaws
	E7508	8.0
	E7510	10.0	16.3	2.8	6.3
	E7512	12.0	18.3
	E7518	18.0	24.3
18 A.W.G 1.0mm²	E1006	6.0	12.3	3.0	6.3	1.7	1.4	Red Yellow	Using 1.0mm jaws
	E1008	8.0	14.3
	E1010	10.0	16.3	3.0	6.3
	E1012	12.0	18.3
	E1018	18.0	24.3	3.0	6.3
16 A.W.G 1.5mm²	E1508	8.0	14.3	3.5	6.3	2.0	1.7	Black Red	Using 1.5mm jaws
	E1510	10.0	16.3
	E1512	12.0	18.3
	E1515	15.0	21.3
	E1518	18.0	24.3
14 A.W.G 2.5mm²	E2508	8.0	15.4	4.0	7.4	2.6	2.3	Gray Blue	Using 2.5mm jaws
	E2510	10.0	17.4
	E2512	12.0	18.4
	E2518	18.0	25.1
	E2525	25.0	32.4
10 A.W.G 6.0mm²	E4009	9.0	16.4	4.5	7.4	3.2	2.8	Orange Gray	Using 4.0mm jaws
	E4010	10.0	17.4
	E4012	12.0	19.4
	E4018	18.0	25.4
8 A.W.G 10mm²	E6012	12.0	20.5	6.0	8.5	3.9	3.5	Green Black	Using 6.0mm jaws
	E6018	18.0	26.5
6 A.W.G 16mm²	E10-12	12.0	22.0	7.5	8.8	4.9	4.5	Brown Off-white	Using 10mm jaws
	E10-18	18.0	26.0
A.W.G 16mm²	E16-12	12.0	22.0	8.7	10.0	6.2	5.8	Off-white Green	Using 16mm jaws
	E16-18	18.0	28.0
4 A.W.G 25mm²	E25-15	15.0	27.0	11.0	12.0	7.9	7.5	Black Brown
	E25-16 E25-18	16.0 18.0	28.0 30.0
	E25-22	22.0	34.0
